Synology 4-Bay DiskStation NAS Enclosure DS923+

Synology 4-Bay DiskStation NAS Enclosure DS923+

Name: Synology 4-Bay DiskStation NAS Enclosure DS923+
Brand: Synology
SKU: IT-008934062
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

215.000 KD

Synology 4-Bay DiskStation
NAS Enclosure DS923+
CPU AMD Ryzen R1600
Comes With Built-in 4 GB DDR4 ECC
Maximum Memory RAM 32GB (16 GB x 2)
2x M.2 NVMe Cache
Color: Black

SKU: IT-008934062 Categories: Backup Devices & Media, NAS Storage, Smart Home Automation, Storage Devices Brand: Synology

Description
Reviews (1)

Synology 4-Bay DiskStation NAS Enclosure DS923+

Synology DS923+ is an ideal network-attached storage solution to streamline data management and productivity. Two built-in M.2 SSD slots and Synology SSD Cache technology allow you to boost system I/O and application performance. Scalable storage design lets you start small and expand storage capacity with Synology DX517 as your data grows.

Flexible file sharing and storage solution for home users and small businesses Synology DS923+ is a powerful 4-bay NAS solution that can be customized and expanded as needed,

with support for up to nine drives, faster networking, and NVMe SSDs for SSD cache or additional storage pools.
With Synology DiskStation Manager (DSM), it is a flexible all-in-one solution for data sharing, syncing, backup, and video surveillance.

AMD Ryzen™ R1600 dual-core (4 threads), max. boost clock up to 3.1 GHz
2x USB 3.2 Gen 1 ports
1x expansion port (eSATA)
2x RJ45 Gigabit Ethernet
Supports 10GbE RJ-45 network upgrade module E10G22-T1-Mini

Reliable performance
Up to 625/559 MB/s sequential read and write throughput for fast and efficient file management

Versatile network storage
Leverage integrated solutions for file and photo management, data protection, virtualization, and video surveillance

Fast and stable connections
Two 1GbE ports for easy integration into existing environments and optional 10GbE connectivity for more specialized and bandwidth-intensive applications

Easy capacity expansion
Expandable by 5 bays to a maximum of 9 storage drives with a DX517 expansion unit

Package contents:

1x DS923+ main unit
1x quick installation guide
1x accessories package
1x AC power adapter
1x AC power cable
2x RJ-45 LAN cable

Specifications:

CPU	CPU Model	AMD Ryzen R1600
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	2-core 2.6 (base) / 3.1 (turbo) GHz
	Hardware Encryption Engine (AES-NI)
Memory	System Memory	4 GB DDR4 ECC
	Memory Module Pre-installed	4 GB (4 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage	Drive Bays	4
	Maximum Drive Bays with Expansion Unit	9 (DX517 x 1)
	M.2 Drive Slots	2 (NVMe)
	Compatible Drive Type* (See all supported drives)	3.5″ SATA HDD 2.5″ SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots. “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port*	2 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	2
	eSATA Port	1
	Notes	This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x2 network upgrade slot
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance	Size (Height x Width x Depth)	166 mm x 199 mm x 223 mm
	Weight	2.24 kg

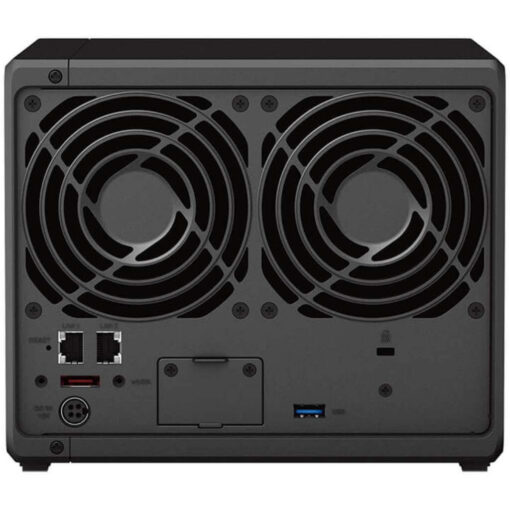

Others	System Fan	92 mm x 92 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators
	Power Recovery
	Noise Level*	22.9 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	100 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	35.51 W (Access) 11.52 W (HDD Hibernation)
	British Thermal Unit	121.09 BTU/hr (Access) 39.28 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC
Warranty	limited hardware warranty,
	Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G Expansion Units: DX517 3.5″ SATA HDD: HAT5300 2.5″ SATA SSD: SAT5210 M.2 2280 NVMe SSD: SNV3410 10GbE Network Upgrade Module: E10G22-T1-Mini VisualStation: VS360HD Surveillance Device License Pack
