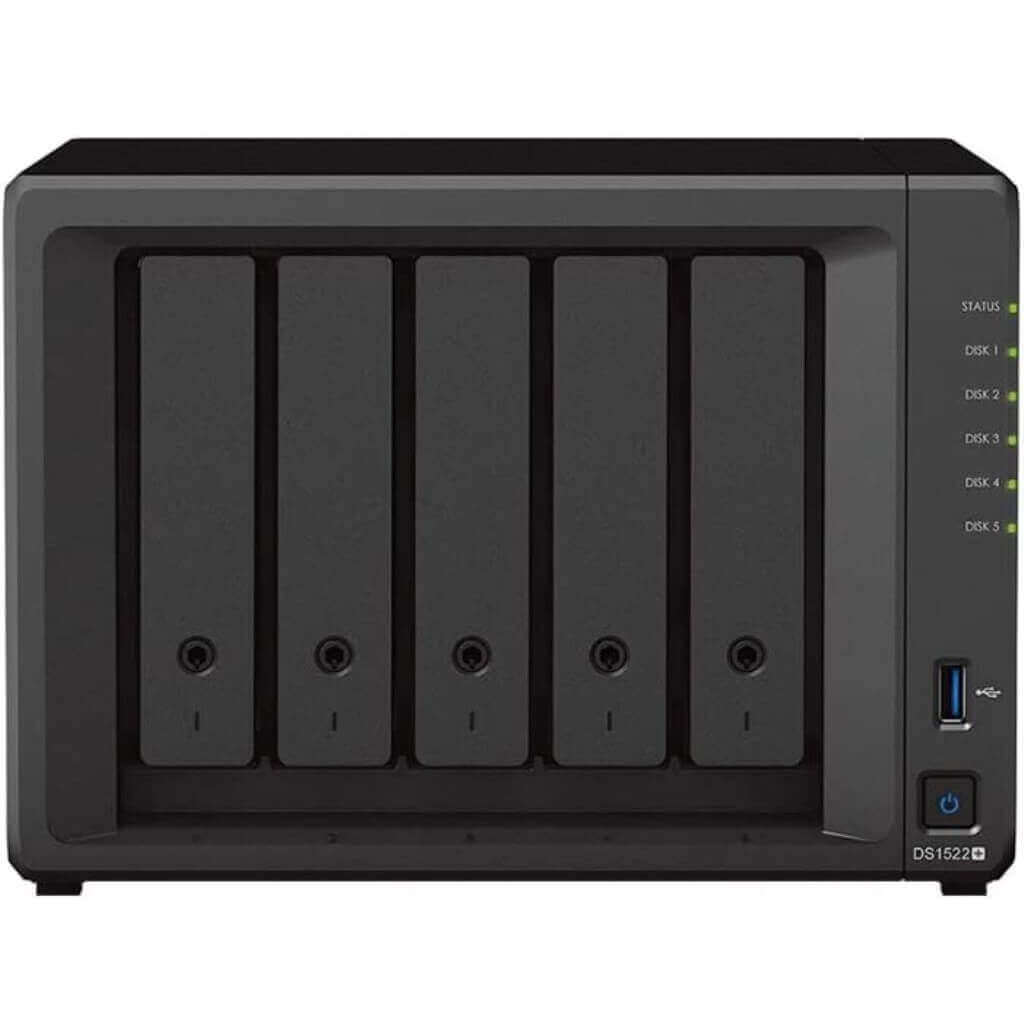

Buy Synology 5-Bay DiskStation NAS enclosure DS1522+ which is easy to use and expand considering your need. This enclosure can support up to 15 drives, 10GbE networking, and NVMe SSD caching. Supported by the DSM (DiskStation Manager), this enclosure offers an all-in-one solution to share your data. This enclosure is also an ideal solution for synchronization, backup, and surveillance solutions.
Specifications: Synology 5-Bay DiskStation NAS Enclosure DS1522+
| Brand | Synology |
| Category | Storage Devices |
| Product | NAS Enclosure |
| Model | DS1522+ |
| Type | 5-Bay DiskStation |
Technical Specifications
Hardware
| CPU | AMD Ryzen™ R1600 dual-core (4-thread) 2.6 GHz, max. boost clock up to 3.1 GHz |
| Hardware encryption engine | AES-NI |
| Memory | 8 GB DDR4 ECC SODIMM (expandable up to 32 GB) |
| Compatible drive types | 5 x 3.5″ or 2.5″ SATA HDD/SSD (drives not included) 2 x M.2 2280 NVMe SSD (drives not included) Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list6
|
| Hot swappable drives | Yes |
| External ports | 2 x USB 3.2 Gen 1 ports 2 x Expansion ports (eSATA)
|
| Form factor | Desktop |
| Size (HxWxD) | 166 x 230 x 223 mm |
| Weight | 2.7 kg |
| LAN ports | 4 x 1GbE RJ-45 |
| Wake on LAN/WAN | Yes |
| Network expansion | Supports E10G22-T1-Mini 10GbE RJ-45 Network Upgrade Module2 |
| Scheduled power on/off | Yes |
| System fans | 2 x (92 x 92 x 25 mm) |
| AC input power voltage | 100 V to 240 V AC |
| Power frequency | 50/60 Hz, single phase |
| Operating environment | Temperature: 0°C to 40°C (32°F to 104°F) Relative humidity: 5% to 95% RH
|
| Storage environment | Temperature: -20°C to 60°C (-5°F to 140°F) Relative humidity: 5% to 95% RH
|
| Maximum operating altitude | 5,000 m (16,400 ft) |
Core Features:
Dependable Performance
Up to 736/796 MB/s sequential read/write throughput makes file operations quick and efficient
Versatile Network Storage
Leverage built-in file and photo management, data protection, virtualization, and surveillance solutions
Fast and Stable Connectivity
Four 1GbE ports for simple integration into existing environments with optional 10GbE connectivity2 to tackle more specialized, bandwidth-heavy applications
Easy Capacity Expansion
Add up to 10 extra drive bays with 2 DX517 expansion units for a maximum of 15 storage drives
