M.2 NVMe SSD hard drive enclosure -10Gbps
Do you have the latest data storage technology, but don’t you have the right housing yet? Then you can consider this cool Orico Aluminum M.2 NVMe SSD RGB enclosure. Combined with a unique design and the latest technology, this is exactly the product you need. This housing is suitable for M.2 NVMe drives up to 2TB.
Extremely fast data transfer
The Orico M.2 NVMe SSD external hard drive enclosure features the latest 10Gbps USB 3.1 Gen2 Type-C interface. This together with the Realtek RTL9210 intelligent chip results in very fast data exchange. High-quality footage, VR technology and other large files can be exchanged quickly and easily.
M.2 interface VS MSATA interface
The M.2 interface is another alternative to the MSATA interface developed by Intel. The reading and measuring speed of the M.2 interface can reach up to 992 MB/s. Also the size of the M.2 interface is different from that of the MSATA interface. For example, the M.2 interface is only 2.75 mm thick and therefore a lot smaller than the MSATA.
Versatile in use
Thanks to the different screw holes, the M.2 NVMe housing can be used for different types of M.2 NVMe drives. It is possible to install the following disks: 22×30, 22×42, 22×60 and 22×80. Check in advance whether your M.2 NVMe drive fits in this Orico M.2 NVMe SSD housing.
Compatible with PCIe NVMe M.2 M Key SSD with 2280, 2260, 2242, 2230 form factor: Samsung 950 Pro, PM951, PM981, SM961, 960 EVO, 960 Pro, 970 EVO, 970 Pro, WD Black, ADATA XPG, Corsair Force, Crucial, Intel Optane memory 600P, 760P, 900P, Toshiba OCZ RC100, Patriot, SK Hynix, Kingston, Mushkin Pilot, DREVO D1 XTREME Z370. Note: Not suitable for SATA M.2 SSD.
Note: This enclosure is only suitable for M.2 NVMe drives, including:
- ADATA SPECTRIX S40G
- ADATA SX6000 Lite and PRO
- ADATA SX8200 PRO
- ADATA XPG GAMMIX S5/S11 PRO
- ADATA XPG SPECTRIX S40G
- KINGSTON S-A1000-M8 NVME 240/480/960 GB.
- ORICO TROODON V500 SSD Series
- LEXAR NM610
- LEXAR NM520
- VGEN HYPER NVME M.2 Series NV256VHY
- SAMSUNG 950 PRO / SM961 (OEM)
- SAMSUNG 960 PRO
- SAMSUNG 970 EVO and EVO PLUS
- WD BLACK PCI-e NVME SSD
- WD BLUE SN500 NVME SSD
The NVMe M.2 hard drive enclosure is therefore NOT compatible with M.2 SATA drives.
Installing the M.2. NVMe SSD drive and enclosure
1: Unscrew the top with the supplied screwdriver.
2: Place the M.2 NVMe SSD in the case.
3: Use the silicone plug to fix the SSD.
4: Stick the heat conductive silicone sheet on the lid.
5: Close the cover and tighten the screw.
6: Connect the product to a smartphone, laptop or PC, the housing with M.2 NVMe SSD is ready to use.
Easy to connect to your phone / laptop
Connect the M.2 NVMe SSD housing to phones that have a Type-C interface such as the Huawei and the Meizu to easily increase the writing space. A number of smartphones from the Samsung brand also have the Type-C interface. Examples include the Samsung Galaxy S8 series, S9 series, S10 series and the Galaxy Note8/Note9, the Huawei Mate 10 series, Mate 20 series and P20 series.
The M.2 NVMe SSD enclosure can also be used with, among others: Apple 12” MacBook, MacBook Pro, MacBook Air, Huawei MateBook, MateBook X, MateBook E, Mi 12.5” Air, Mi Gaming Notebook, ASUS ZenBook series / ROG series, Lenovo Yoga 5/ThinkPad XI, Dell XPS Series, Razer Blade and Software Surface 2.

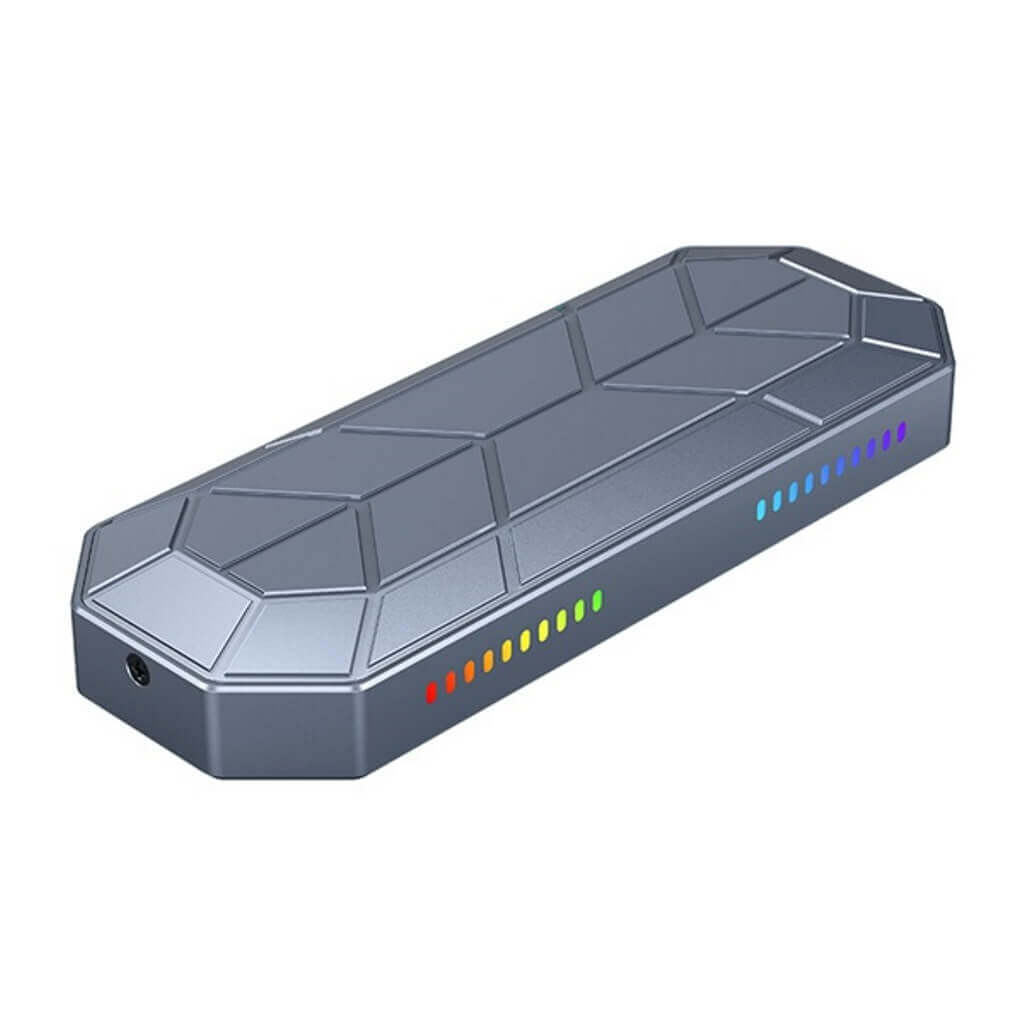

Stylish aluminum design with cool RGB lighting
The Orico Aluminum M.2 NVMe SSD is made of aluminum which brings a number of advantages. This way, your M.2 NVMe SSD is protected at all times against disruptions, but also against overheating. This results in the best performance of your M.2 NVMe drive.
Because the housing has RGB lighting, it is a very unique housing. The M.2 NVMe SSD housing is equipped with a unique RGB LED indicator and has an automatic sleep mode after 10 minutes.
RGB light status:
- Red LED lighting: The red light is always on when the power is on, but there is no M.2 NVMe drive in the enclosure.
- Standby: LED lighting in the colors red, yellow, blue, green and purple alternate (breathe and cycle mode).
- Read and write data: The colors red, yellow, blue, green and purple flash alternately and quickly.
- Sleep mode: blue LED lighting.
What is included?
- In addition to the housing, the following is included:
- 1x USB 3.0 Type-A to USB-C 3.1 cable. (5Gbps, applicable for PC)
- 1x USB-C 3.1 to USB-C 3.1 cable. (10Gbps, applicable for laptop and USB-C phone)
- 1x bag with a screw and silicone plug.
- 1x heat-resistant silicone sheet for the case cover.
- 1x screwdriver.
- 1x user manual.
Product specifications: Orico Aluminum M.2 NVMe SSD
|Type:||M.2 NVMe SSD enclosure.|
|Housing with RGB lighting.|
|Output interface:||USB 3.1 Type-C.|
|Transmission Speed:||USB 3.1 10Gbps Gen2.|
|Chip:||Realtek RTL9210 Intelligent chip (10Gbps).|
|Power Supply:||Type-C power port.|
|✔ No driver needed.|
|Supports:||Windows, Mac, Linux and Android.|
|Includes A to C + C to C cable.|
|Product Dimensions:||107mm x 40mm x 14.5mm.|
